Iron Ore concentrate Magnetic Separator

  • Iron Ore concentrate Magnetic Separator
  • Iron Ore concentrate Magnetic Separator
  • Iron Ore concentrate Magnetic Separator
  • Iron Ore concentrate Magnetic Separator

Iron Ore concentrate Magnetic Separator

    Unit Price: 1599~9999 USD
    Min. Order: 1 Set/Sets
    Packaging: water and rust proof in container
    Transportation: Ocean
    Supply Ability: 100 set per month
    Port: Qingdao,Tianjin

Product Description

Iron Ore Magnetic Separator

Magnetic separator is one essential equipment in the ore dressing process which can separate raw materials with different magnetic rigidities.It is mainly used for screening the magnetic and non-magnetic material from the mineral powder and mineral pulp.The magnetic system of a magnetic separator is a compound of fine ferrite material and Rare Earth Magnets.The average magnetic induction intensity of the surface of the cylinder is 100~600mT.

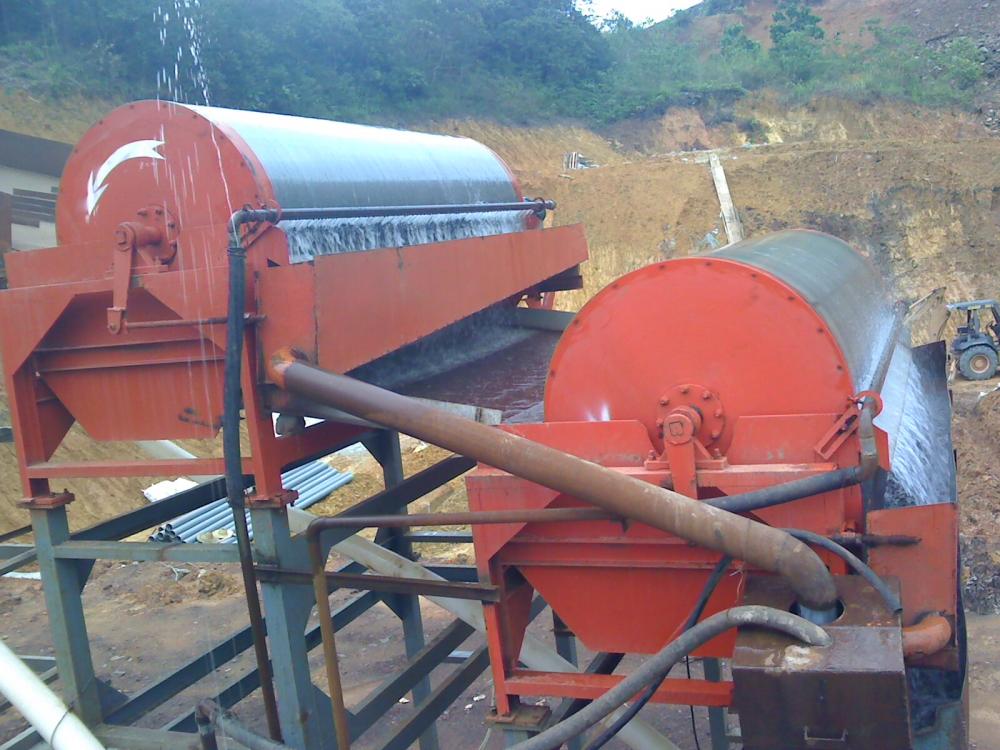

Magnetic Separator 2

Magnetic separator applications

Magnetic separator can be divided into wet magnetic separator and dry magnetic separator. Wet magnetic separator is the commonly used separator in ore dressing plants, which is applicable to separate strong magnetic minerals. Magnetic separator can separate magnetite, limonite, hematite, manganese siderite ore, ilmenite, wolframite, manganese ore, metallurgical manganese ore, manganese oxide, iron ore, kaolin, rare earth mining and so on. Magnetic separation process is realized by the magnetic and mechanical force on the particles in the magnetic field. Different magnetic mineral grains will move along a different trajectory, thus sorting into two or more separate ore dressing products.

Magnetic Separator 8

Magnetic Separator 5


Magnetic separator specifications

Model CTB612 CTB618 CTB7512 CTB7518 CTB918 CTB924 CTB1018 CTB1024
Diameter(mm) Φ600 Φ600 Φ750 Φ750 Φ900 Φ900 Φ1050 Φ1050
Length (mm) 1200 1800 1200 1800 1800 2400 1800 2400
Speed (r/min) 35 35 35 35 20 20 20 20
Gauss 1200-1500 1200-1500 1200-1500 1200-1500 1200-1500 1200-1500 1200-1500 1200-1500
Feeding size (mm) 0-0.4 0-0.4 0-0.4 0-0.4 0-0.4 0-0.4 0-0.4 0-0.4
Feeding density(%) 20-25 20-25 20-25 20-25 25-35 25-35 25-35 25-35
Work clearance(mm) 30-40 30-40 30-40 30-40 45-75 45-75 45-75 45-75
Capacity dry ore (t/h) 10-15 15-20 15-20 30-35 35-50 40-60 50-100 70-130
pulp (m3/h) 10-15 15-20 15-20 30-35 100-150 120-180 170-120 200-300
Power (kw) 2.2 2.2 2.2 3 4 4 4 5.5
Weight (kg) 1200 1500 1830 2045 3500 4000 4095 5071
Overall dimension
(mm)
2280×1300
×1250
2280×1300
×1250
2256×1965
×1500
2280×1965
×1500
3000×1500
×1500
3600×1500
×1500
3440×2220
×1830
3976×2250
×1830

Advantages of Wet Magnetic Separator

1.Magnetic separator is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore and ilmenite and can also be used for removing iron from the materials such as coal, non-metal ore,and building material.

2.The permanent magnetic force tumbler is suitable for:
After medium and fine crushing, the magnetic pulley is used for eliminating the wall rock in the iron ore to improve the fineness.
To the un-deoxidized ore and send back for re-agglomeration.
To eliminate iron in the ceramic industry for improving the ceramic quality.
To eliminate iron in coal, foundry sand, refractory, and other industries.


Magnetic Separator 6
